Track Drop-Down Menu

The Track Drop-Down Menu is accessed by clicking in the Track Name (by the downward-pointing triangle) in the Track Control Panel. Alternatively, you can access the Track Drop-Down Menu on the focused track by pressing SHIFT + M. Use the Drop-Down to manipulate individual or stereo tracks: Rename a track Move a track up or down in the project window Set the current type of view for the track Set whether a track is mono, left channel or right channel Make or split stereo tracks Set the current sample rate and sample format for the track. To change the default type of track view with which a new project always starts, change "Default View Mode" in Tracks Preferences. To change the default sample rate and sample format with which a new project always starts, go to Quality Preferences.

Name...

Displays the "Track Name" dialog where you can give the track a new name. Useful in multi-track projects to provide a visual indication of the content of each track.

Moving Tracks

Any individual track can be moved up or down using the menu items.

• Move Track Up: Moves track up.
• Move Track Down: Moves track down.

It is usually more convenient to just click in the Track Control Panel on the left of the track and drag the track up or down

Waveform

This first half of this waveform is a "Chirp" tone which stays at the same amplitude (loudness), as shown by the horizontal top and bottom. The linear scale on the left goes from +1 at the top (the maximum possible loudness without distortion when the signal is positive) to -1 at the bottom (the maximum when it is negative). The horizontal line centered on 0.0 is silence. What you can't see without zooming much further in is that the pitch of this tone is gradually increasing. Zooming would show the individual cycles in the waveform (the positive and negative peaks) occurring much closer together at the end of the sound. The second half of the waveform is the word "Audacity" spoken by a male voice.

This image is a waveform view of an extremely short chirp, one tenth of a second, with only a few cycles, where the pitch increases very rapidly. As it's so short, we can zoom in to show the closer spacing of the cycles as the frequency (and hence the pitch) increases from left to right.

Waveform (dB)

This is the same chirp and word as in the first Waveform image, but in this view the vertical scale is in dB. This is a logarithmic method of displaying the amplitude. It gives a better representation of the sound we hear, because this scaling gives better detail for the fainter sounds. It also shows more clearly than the waveform view how the energy of the "Audacity" word is naturally concentrated in the central "dac" part, and weakest at the end.

The dB range of the vertical scale is set in Edit > Preferences > Interface.

Spectrogram

This view of the same chirp and word shows how the amount of energy in different frequency bands changes over time. Higher frequencies are at the top of the scale, lower frequencies at the bottom. The blue color is the least energy and the red and white are the most. The progressive increase of pitch in the chirp tone is vividly demonstrated by the upward sloping diagonal line. Spectrogram view also confirms that the "Audacity" word has most energy in the middle of the word.

• Go to the Spectrograms Preferences to see the options for adjusting exactly how the spectrum is displayed.
• You can click in the Vertical Scale at any time to zoom in to a particular frequency range, or right-click to zoom out. Frequencies higher than half the sample rate of the track are not displayed because a given rate cannot contain higher frequencies than that.
• This tutorial in the Wiki shows how the Spectrogram view can be used to help track down and eliminate hard to find clicks.

Spectrogram log(f)

This view is the same as the Spectrogram view except that the vertical scale is logarithmic.

Pitch (EAC)

Highlights the contour of the fundamental frequency (musical pitch) of the audio, using the Enhanced Autocorrelation (EAC) algorithm.

The EAC Algorithm was developed to produce a mathematical representation of the changes of pitch in a piece of audio. The aim was to allow automated comparison of sound files so that two versions of the same tune could be recognized as being similar, even if played in different keys, or on different instruments.

When using Pitch view, go to Spectrograms Preferences and make sure that "Frequency Gain" is set to 0 or 1. Any other setting will make the Pitch view unusable.

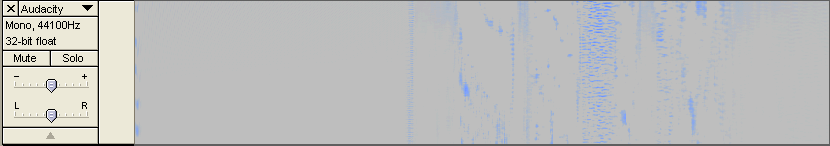

• Here is the spoken word "Audacity" in Pitch view:

• Here is a two-octave scale from middle C played on the piano.

Splitting and Joining Channels

• Mono, Left Channel and Right Channel Mainly used on multiple single channel files (ones that are not the split left and right channels of a stereo pair) so as to mix to a final stereo track. "Mono" feeds the output of that track to both left and right speakers on most two channel systems; "Left Channel" and "Right Channel" feed it only to that respective speaker. Currently Audacity does not support multi-channel playback.
• Make Stereo Track Use this command on the upper of two adjacent, single channel tracks which you want to join into one stereo track. The upper track will become the left channel of the new stereo pair, and the lower the right channel. The tracks do not need to be selected with the mouse or keyboard before this process, and either can be mono, left or right before joining to stereo.
• Split Stereo Track splits the two channels of a stereo pair into separately editable left and right channels, left above the right. If you are mixing multiple single channel files, you might want to use the "Split Stereo to Mono" command noted below then use the pan slider on the Track Control Panel. This will give you more control over the pan than leaving the tracks as left and right channel.
• Split Stereo to Mono splits the two channels of a stereo pair into separately editable mono channels.

See Splitting and Joining Stereo Tracks for more details on using the Split Stereo Track, Split Stereo to Mono and Make Stereo Tracks commands.

Set Sample Format

Change the sample format of the track to 16-bit integer PCM, 24-bit integer PCM or 32-bit floating point. The numbers representing each sample in the waveform will be recalculated.

Set Rate

Change the sample rate of the track, which can be thought of as the concentration of audio samples in the track or the time distance between them. Increasing the rate squeezes the existing samples into a shorter length (so increasing playback speed and pitch), while decreasing the rate spreads them out over a greater length (so reducing playback speed and pitch). This is useful for example if you import a file that has the wrong rate and thus plays at the wrong speed.

Changing the sample rate of a track without changing the speed involves resampling. Resampling for export is always done by changing the Project Rate in Selection Toolbar. To resample a track for use in the project, choose Resample in the Tracks Menu.
